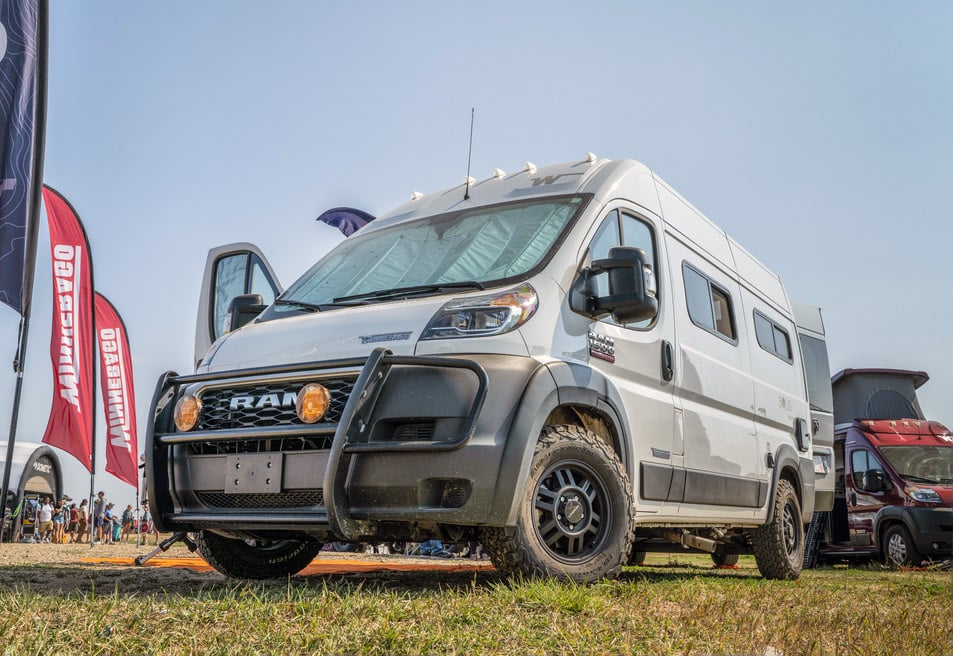

A RAM ProMaster is a good alternative for constructing a camper. These cargo vans have a large inside and boxy form which makes them simple to design round. If you wish to construct the proper ProMaster camper conversion then you definitely’ll must know the size.
We’ve crunched the info and put collectively this handy comparability desk so you’ll be able to discover the inside and exterior dimensions of the RAM ProMaster 1500, 2500, 3600, cargo vans, and passenger vans. Let’s get began!
RAM ProMaster Comparability Desk
Under you’ll discover a comparability desk containing inside and exterior dimension of the RAM ProMaster vans. Measurements included within the desk are taken from the brochures and spec sheets linked beneath. Listed here are some suggestions for utilizing the chart:
- We advocate utilizing a desktop to view this chart.
- You may filter vans by 12 months, model, physique size, and roof top. By default, 10 entries are proven–and you’ll develop the desk to indicate extra.
- When getting into a 12 months, you have to embody a quantity in each “from” and “to” fields, then hit “search.”
- Making a variety will prohibit the opposite accessible choices.
- Click on “particulars” on the left column of every row to see all identified dimensions. Click on the pink “columns” button to indicate or disguise extra columns for comparability between fashions.
- Click on the high header of every column to type by ascending or descending order.
- If the chart seems clean, strive refreshing the web page or de-selecting all filters. (Be sure a 12 months between 2014 and 2023 is chosen).
ProMaster Fashions
The ProMaster cargo van is offered with three wheelbase choices, 4 general physique lengths, and three roof heights.
The passenger van solely comes with a 159″ wheelbase and excessive roof choice.
| Fashions | Wheelbase | Wheelbase | Wheelbase | Wheelbase |
|---|---|---|---|---|
| 1500 | 118″ | 136″ | – | – |
| 2500 | – | 136″ | 159″ | – |
| 3500 | – | 136″ | 159″ | 159″ EX |
Dimensions
| Wheelbase | Exterior Size | Inside Size (cargo ground) |
|---|---|---|
| 118″ | 195.4″ | 103.1″ |
| 136″ | 213.2″ | 120.6″ |
| 159″ | 236.2″ | 147″ |
| 159″ prolonged | 250.6″ | 161.3″ |
| RAM ProMaster | Width |
|---|---|
| Exterior | 112.2″ |
| Exterior (excluding mirrors) | 81.3″ |
| Inside (cargo ground) | 75.6″ |
| Inside (between wheelhouses) | 56″ |
| ProMaster Roof | Exterior (floor to roof) | Inside (cargo ground to ceiling) | Standing Top |
|---|---|---|---|
| Commonplace | 93″ | 66.9″ | 5’6″ |
| Excessive Roof | 103.6″ | 77.1″ | 6’4″ |
The next are common inside and exterior dimensions you’ll be able to anticipate to see on the present era of RAM ProMaster vans. For particular mannequin years, seek advice from the official brochures beneath.
- Exterior width (together with mirrors): 112.2″
- Exterior width (excluding mirrors): 81.3″
- Cargo width (at ground): 75.6″
- Cargo width (between wheelhouses): 56″
- Max cargo top: 66.9-77.1″
- Load top (loaded): 23.3-26.8″
- Load top (unloaded): 21″
- Aspect-door opening top: 59.5-69.1″
- Aspect-door opening width (sliding): 42-49″
- Rear cargo door opening top: 59.8-70.5″
- Rear cargo door opening width: 63.4″
- Turning radius (curb-to-curb): 36.3-46.8″
- Cargo capability (quantity): 259.2-462.9 cu.ft.
- Max roof load: 330 lbs.
- Max tow capability: 6,400-6,900 lbs.
Brochures and Tech Sheets
Historical past
The RAM ProMaster was launched to america in Might, 2014. This was the third era of the Fiat Ducato which was launched in Europe in 1981.
Between 2014-2023 there have been some minor updates to the car, however general dimensions have remained largely the identical.
- First Technology (1981–1993)
- Second Technology (1993-2006)
- Fiat Ducato
- Peugeot Boxer
- Third Technology (2006-present)
- Peugeot Boxer (Europe)
- Ram ProMaster (North America)
How To Learn Dimensions
Automotive firms pack plenty of knowledge into their spec sheets. To make sense of them, there are some things to think about:
Wheelbase
The wheelbase is the gap between the entrance and rear axles of a car. It’s vital for inside area planning because it impacts the general size of the car, in addition to its turning radius.
At the moment, ProMaster cargo vans are available in three completely different wheelbases with 4 general physique lengths:
- 118 inch wheelbase
- 136 inch wheelbase
- 159 inch wheelbase
- 159 inch wheelbase prolonged
The prolonged wheelbase provides an extra 14 inches in size. ProMaster passenger vans solely include the 159″ wheelbase.
Roof Top
ProMaster vans include two completely different top choices: commonplace, and excessive roof. Most individuals can not stand totally upright inside an ordinary top ProMaster van.
- Commonplace roof transit vans: Measure 93 inches (7.75 ft) exterior. 66.9 inches (5 ft 6 inches) inside.
- Excessive roof transit vans: Measure 103.6 inches (8.6 ft) exterior. 77.1 inches (6 ft 4 inches) inside.
When changing a ProMaster right into a camper, you need to account for about 2-4 inches of insulation on either side. This will scale back your standing top by as much as 6 inches!
Learn this text about commonplace vs excessive high camper vans to be taught some methods about constructing round these restrictions.
Doorways
Aspect-door opening top: That is the peak of the aspect door opening from the bottom.
Aspect-door opening width: The width of the sliding door when it’s totally open.
Rear cargo door opening width: The width of the rear cargo door when it’s totally open.
Cargo Capability
Cargo quantity: The cargo quantity is complete cubic ft accessible for gear utilizing the size, top, and width of the cargo space. This quantity is measured behind the drivers seat and is closely affected by the roof top and size of the car.
Passenger vans have extraordinarily small cargo volumes as a result of they don’t embody the area accessible if you take out the seats.
Cargo size, entrance (at ground): The cargo size is the gap from the entrance of the car, measured at ground degree, to the again of it.
Cargo size, entrance (at belt): The cargo size is the gap from the entrance of the car, measured at belt degree, to the again of it.
Max ground width: The max ground width is the widest level of the cargo space.
Cargo width between wheelhouses: That is the width of the cargo space between the left and proper wheel arches.
Different Numbers
Load top (unloaded): The load top is the gap from the bottom to the cargo ground when the car is empty. It so you understand how excessive you’ll should raise an object to get it into the camper.
Turning radius (curb-to-curb): That is the gap {that a} car can flip in a full circle, from one curb to the opposite. This measurement helps you perceive how tight a nook your Sprinter could make, which is particularly vital when making an attempt to maneuver round tight areas or tough parking tons.
Most payload: That is the utmost quantity of weight (in kilos) that may be safely loaded into the car.
GVWR: The Gross Automobile Weight Ranking provides you an thought of the utmost weight that the Sprinter can deal with. It is a mixture of car weight and cargo weight.
Conversion Concepts
If you wish to flip your ProMaster right into a camper van, then take a look at this listing of ProMaster van conversions and concepts which can be excellent for van life. The article will present visuals and extra particulars about shopping for and constructing the proper camper.
FAQs
Are you able to stand in a ProMaster camper van?
Excessive Roof ProMaster vans have a 77.1″ standing top which is about 6 ft, 4 inches tall with no flooring or insulation added. Van lifers ought to plan so as to add roughly 2-4 inches of insulation on each the ground and ceiling throughout the conversion course of.
Are you able to match a queen-sized mattress in a Ram ProMaster?
The ProMaster has a 75.6″ inside width so it’s the solely cargo van that lets you match a queen-sized mattress sideways with no modifications.
Is a RAM ProMaster good for van life?
ProMaster cargo vans have straight, boxy partitions and broad interiors which make them excellent for constructing out a camper conversion. These automobiles are a number of the greatest vans to dwell in as a result of you’ll be able to match a mattress sideways not like different cargo vans available on the market.
